For a 220-volt circuit to a garage, a 10-gauge wire is typically suitable. This size assumes a standard load and a run of up to 60 feet.

Planning your garage’s electrical setup necessitates a keen understanding of wire sizing to ensure safety and efficiency. The correct wire size for a 220-volt circuit to your garage largely depends on the amperage of the circuit and the distance the wire must travel.

Choosing a 10-gauge wire is usually recommended for most 220-volt circuits with a standard load, such as for power tools or a garage heater, especially when the run does not exceed 60 feet. It’s essential to use the proper wire size to prevent potential hazards such as overheating or fires. Consulting the National Electrical Code (NEC) and possibly a professional electrician will help ensure that all electrical work meets safety standards and local regulations. Remember to always prioritize safety when dealing with electrical installations, and when in doubt, seek professional advice to guarantee that your garage has a reliable and safe power supply.

Credit: www.garagejournal.com

Choosing The Right Wire Size For 220v Garage Projects

Choosing the right wire size for a 220V garage project is crucial for safety and functionality. To determine the proper wire size, assessing the garage electrical needs is the first step. Understand the tools and appliances that will be powered.

The wire size is also dependent on the ampacity, which refers to the maximum current the wire can safely carry. Considering the voltage drop is important too. A voltage drop happens when electric current travels over a distance, causing a loss in voltage.

To avoid significant voltage drops, which can affect the performance of your equipment, ensure that the wire gauge is appropriate. A larger wire diameter will allow for better current flow and reduce voltage drop, especially over longer distances.

Important Electrical Terms And Codes

Understanding your garage’s electrical needs is vital before installing 220-volt wiring. The National Electrical Code (NEC) sets safety standards to follow. Gauge refers to wire thickness, where a lower number means a thicker wire. Thicker wires carry more current, measured in amps, with less resistance. Ampacity is the maximum current a wire can handle safely.

The right wire size ensures efficient and safe power to your garage. The NEC provides tables to match wire gauge with expected loads. Checkout those tables for safe practices.

Calculating Load And Distance Factors

Before running a 220V power line: you must calculate the total load of your garage appliances. First, list all devices and their power needs. The sum equals your total load. Electrical experts can help if needed.

The wire size also depends on the run’s length. Electrical resistance increases with distance. More resistance means thicker wire needed. Your garage’s distance from the power source is key. Keep wire thickness in mind for safety and energy efficiency.

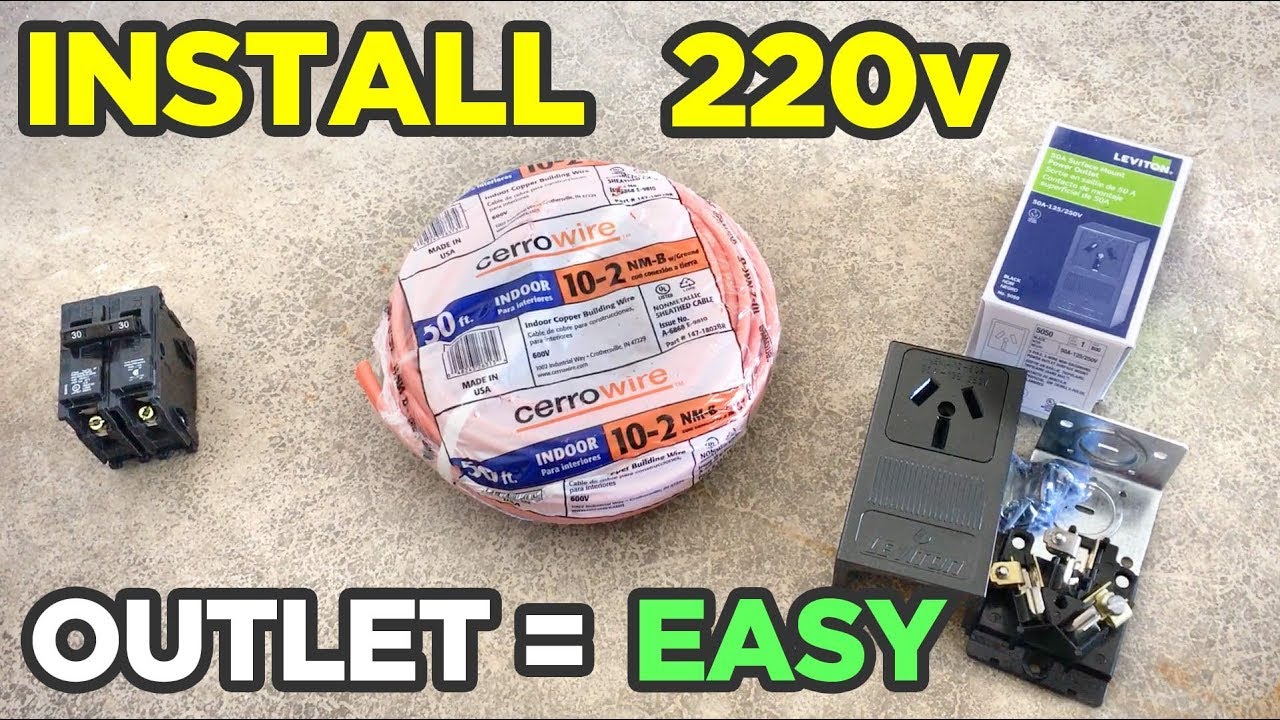

Credit: wilkerdos.com

Wire Gauge Selection

Choosing the right wire gauge for 220-volt wiring to your garage is critical. You must match the wire size to your electrical load requirements. This ensures safety and efficiency. The amperage draw of your equipment dictates the wire size needed. Use a wire gauge chart for guidance.

Consider upsizing the wire if there’s potential for future higher loads. Long runs to garages often need thicker wires to reduce voltage drop. Use one gauge bigger for every 50 feet of distance beyond 100 feet.

Distance (feet)	Normal Gauge	Upsize Gauge
0-100	Use chart value	No change
150	Use chart value	One size larger
200	Use chart value	One size larger
250+	Use chart value	Two sizes larger

Safety Precautions And Best Practices

Ensuring safety is crucial when running 220V wiring to a garage. Proper wire size is a must. Use a wire gauge that matches the amperage of your circuit. For most 220V garage circuits, that is 10-gauge for 30 amps and 8-gauge for 40-50 amps. Wires must be in a conduit to protect against damage. Always turn off the power before starting work.

Regular inspections help avoid electrical issues. Check for any signs of damage or wear on wires. Tight connections keep the circuit safe and strong. Test the garage outlets with a voltage tester to ensure proper function. Schedule a professional inspection annually for best practices and peace of mind.

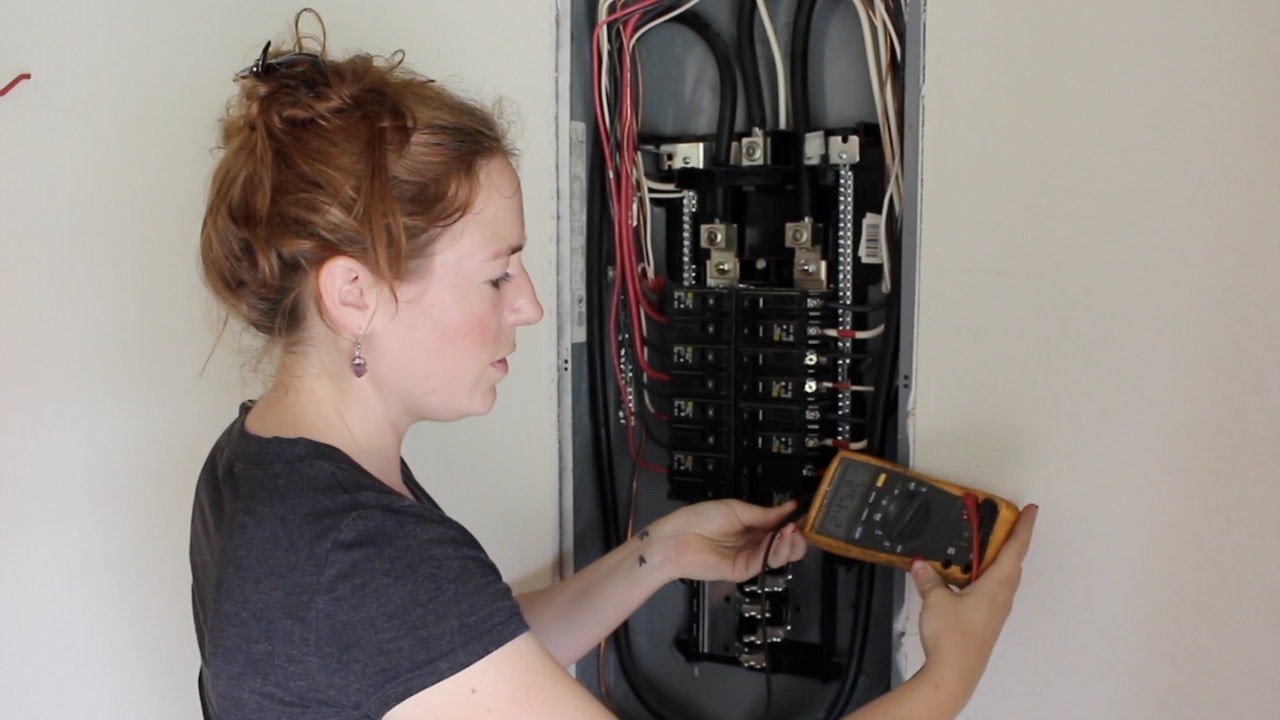

Credit: m.youtube.com

Professional Input And Diy Considerations

Electrical work in your garage requires safety first. Always consult a professional electrician for advice. This ensures both compliance with local codes and your safety. Electricians have the experience to gauge the correct wire size and safely handle the installation process.

For the enthusiasts aiming to tackle a DIY electrical project, understanding the necessity of the right tools is crucial. Knowledge of electrical systems is pivotal. Safe work practices are a must. Always turn off the power before starting. Use protective equipment at all times.

Check local regulations	Purchase quality materials	Secure correct permits
Understanding building codes	Wire gauge matters	Inspections may be needed

DIY networks offer tutorials. Online video guides are valuable resources. Practicing safety protocols prevents accidents. Enlisting a buddy can make the project easier. Ensure the power is off before starting work.

Conclusion

Selecting the correct wire size to run 220V to your garage ensures safety and efficiency. Opt for the appropriate gauge based on distance and amperage, following the National Electrical Code. Consult with a licensed electrician to guarantee a successful and secure installation.

Proper wiring supports your power needs today and tomorrow.
